| MOD-MUX |

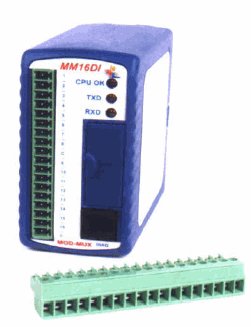

MM16DI
The MM16DI module is a 16 channel digital input module. The inputs
divided into 2 isolated groups of 8 inputs each. This allows for many
configuration could be where one group is connected as common
positive and the second group connected as common negative.
The counters operate in three modes.
In mode 0: All the counters are disabled.
In mode 1:
The counters are 32 bit counters allowing a count value from
0 to 4294967295. The count value can be cleared by writing a zero to
the associated registers or preset to any other value using the same
method.
In mode 2:
The inputs are connected as up/down counters. Input 1 will increment
counter 1 whilst input 2 decrements counter1. In the same way, inputs
3&4 operate counter 2, inputs 5&6 operate counter 3 and inputs 7&8
operate counter 4,etc.
Note: The count values are not battery backed-up and will be lost if
power is turned off. The format of the registers allows the status of the
inputs to be read as either single bits or all at once as a single register
on the Modbus network.
divided into 2 isolated groups of 8 inputs each. This allows for many
configuration could be where one group is connected as common
positive and the second group connected as common negative.
The counters operate in three modes.
In mode 0: All the counters are disabled.
In mode 1:
The counters are 32 bit counters allowing a count value from
0 to 4294967295. The count value can be cleared by writing a zero to
the associated registers or preset to any other value using the same
method.
In mode 2:
The inputs are connected as up/down counters. Input 1 will increment
counter 1 whilst input 2 decrements counter1. In the same way, inputs
3&4 operate counter 2, inputs 5&6 operate counter 3 and inputs 7&8
operate counter 4,etc.
Note: The count values are not battery backed-up and will be lost if
power is turned off. The format of the registers allows the status of the
inputs to be read as either single bits or all at once as a single register
on the Modbus network.
