| MODMUX |
Modular MODBUS teth
MULTIPLEXING IO Modules
MULTIPLEXING IO Modules

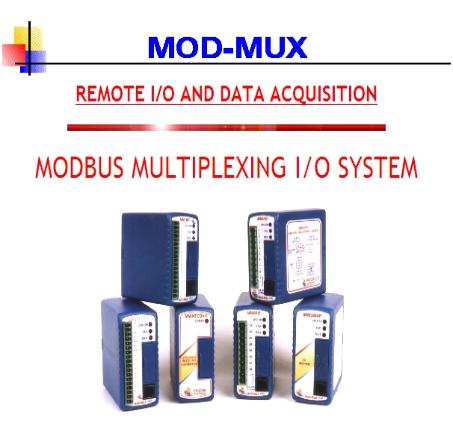

MOD-MUX is an innovative modular I/O system which provides a
simple low cost solution for distributed I/O requirements. The
MOD-MUX system consists of stand-alone Digital and Analog Input
and Output modules which are connected together on a RS485 two
wire multidrop network using the MODBUS protocol. Two baud rates
are selectable, 9600 and 19200 baud.
Typical response times are under 50ms.
All MOD-MUX modules plug into industry standard DIN rail mount 11
pin relay bases. All modules have a minimum isolation of 1000VAC
rms between the field and logic.
simple low cost solution for distributed I/O requirements. The
MOD-MUX system consists of stand-alone Digital and Analog Input
and Output modules which are connected together on a RS485 two
wire multidrop network using the MODBUS protocol. Two baud rates
are selectable, 9600 and 19200 baud.
Typical response times are under 50ms.
All MOD-MUX modules plug into industry standard DIN rail mount 11
pin relay bases. All modules have a minimum isolation of 1000VAC
rms between the field and logic.
